Bosch Rexroth Axial piston variable pump A4VG Series 32 Construction machinery, agricultural machinery, ships, etc.

Features
▶▶ Integrated auxiliary pump for boost and pilot oil supply
▶▶ Flow direction changes smoothly when the swashplate
is moved through the neutral position
▶▶ High-pressure relief valves with integrated boost
function
▶▶ With adjustable pressure cut-off as standard
▶▶ Boost-pressure relief valve
▶▶ Through drive for mounting of further pumps up to same
nominal size
▶▶ Large variety of controls
▶▶ Swashplate design

Safety instructions
- The A4VG pumps are designed for use in closed circuits.
- Project planning, installation and commissioning of the axial piston units must be carried out by qualified personnel.
- Before using the axial piston unit, please read the corresponding instruction manual in its entirety. It is available from Bosch Rexroth on request.
- During and shortly after operation, there is a risk of burns from the axial piston unit (especially the solenoid). Take appropriate safety measures (e.g. wear protective clothing).
- The characteristics of the axial piston unit may change due to different operating conditions (operating pressure, oil temperature).

Working line ports
· Ports and fixing threads are designed for the maximum specified pressure. The machine or system manufacturer must ensure that the safety factors of the connecting elements and lines meet the specified operating conditions (pressure, flow, hydraulic fluid, temperature).
· Working line ports and function ports are intended for hydraulic lines only.
- The data and instructions contained here must be observed.
- The product cannot be approved as a component in accordance with the general machinery safety concept in accordance with ISO 13849.

Mounting screws
For mounting screws with ISO metric threads to DIN 13 and threads to ASME B1.1, we recommend checking the tightening torques for the respective housing in accordance with VDI 2230.
· Threaded holes of the axial piston unit:
The maximum permissible tightening torque MG max for internal threaded holes is a maximum value and must not be exceeded.
· Locking screws:
For the metal locking screws supplied with the axial piston unit, the required tightening torque MV for the locking screws should be used.

For more detailed parameters of A4VG and other models, please contact our sales staf

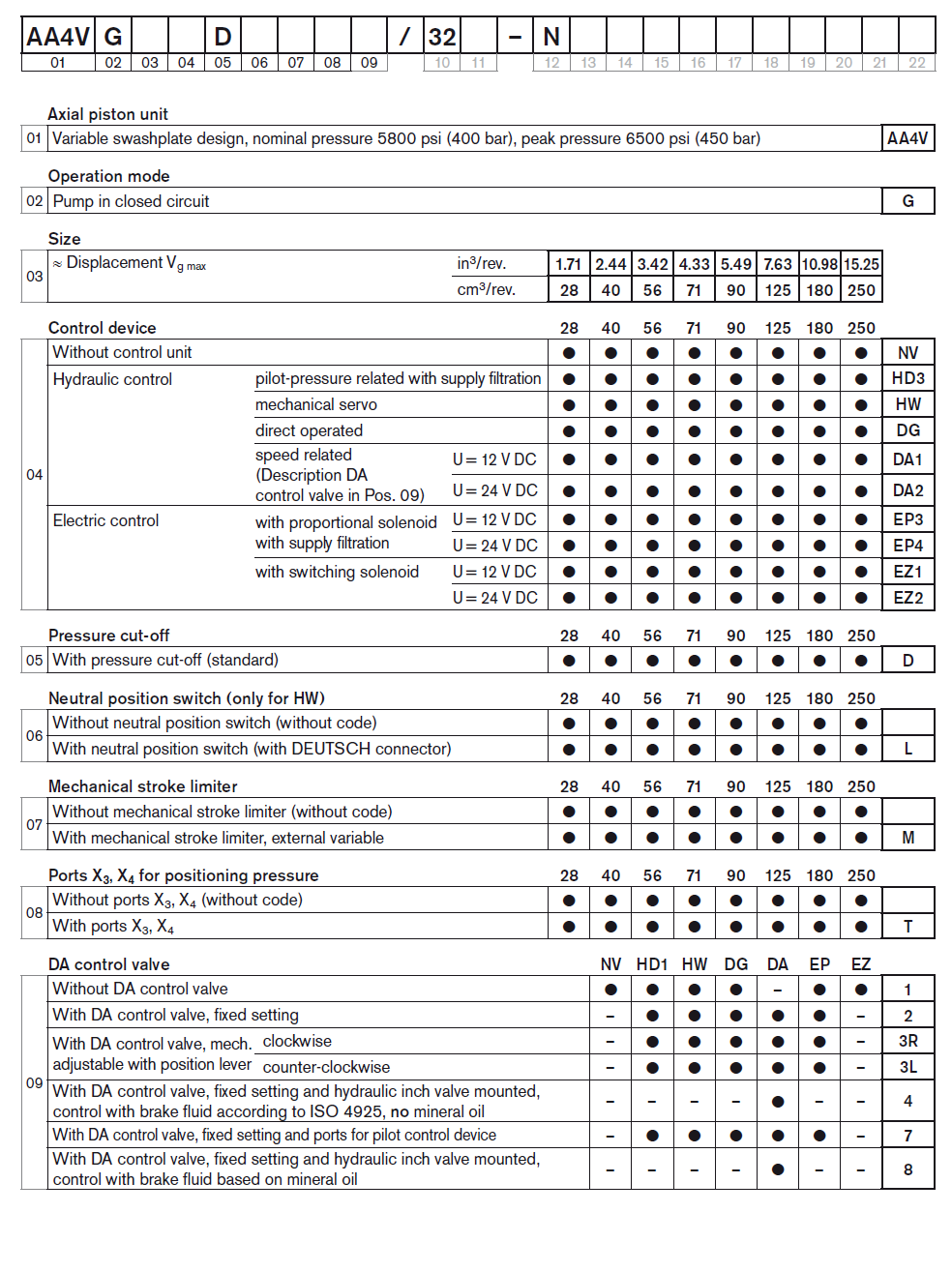

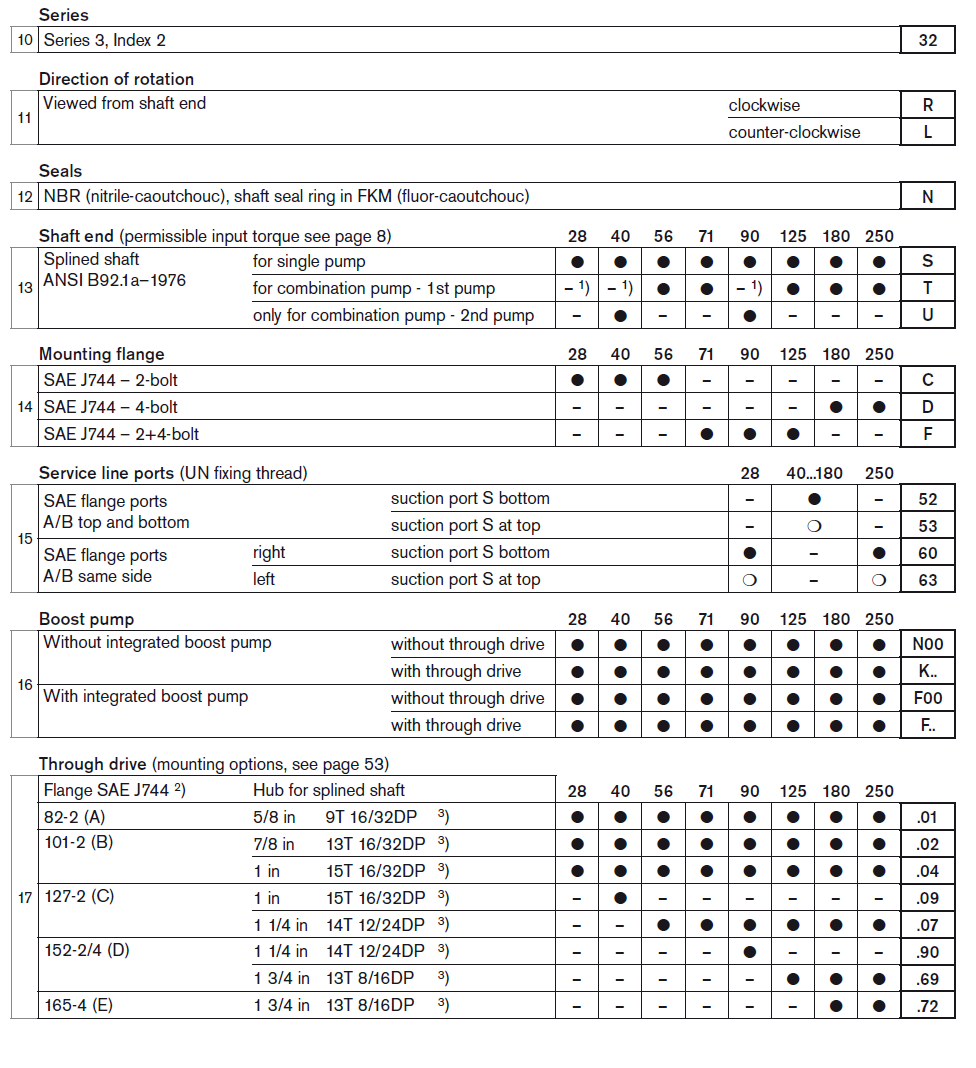

Type code

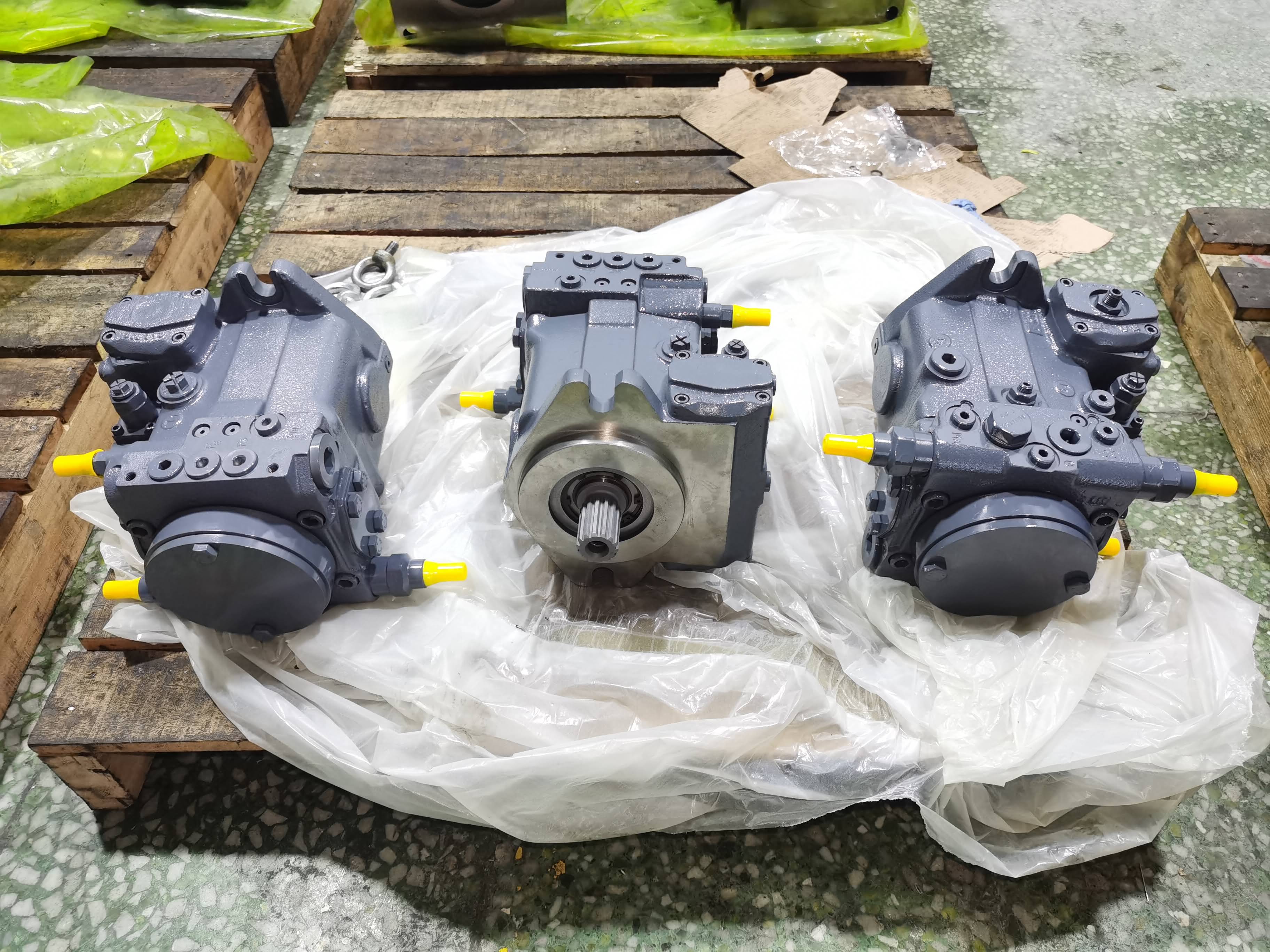

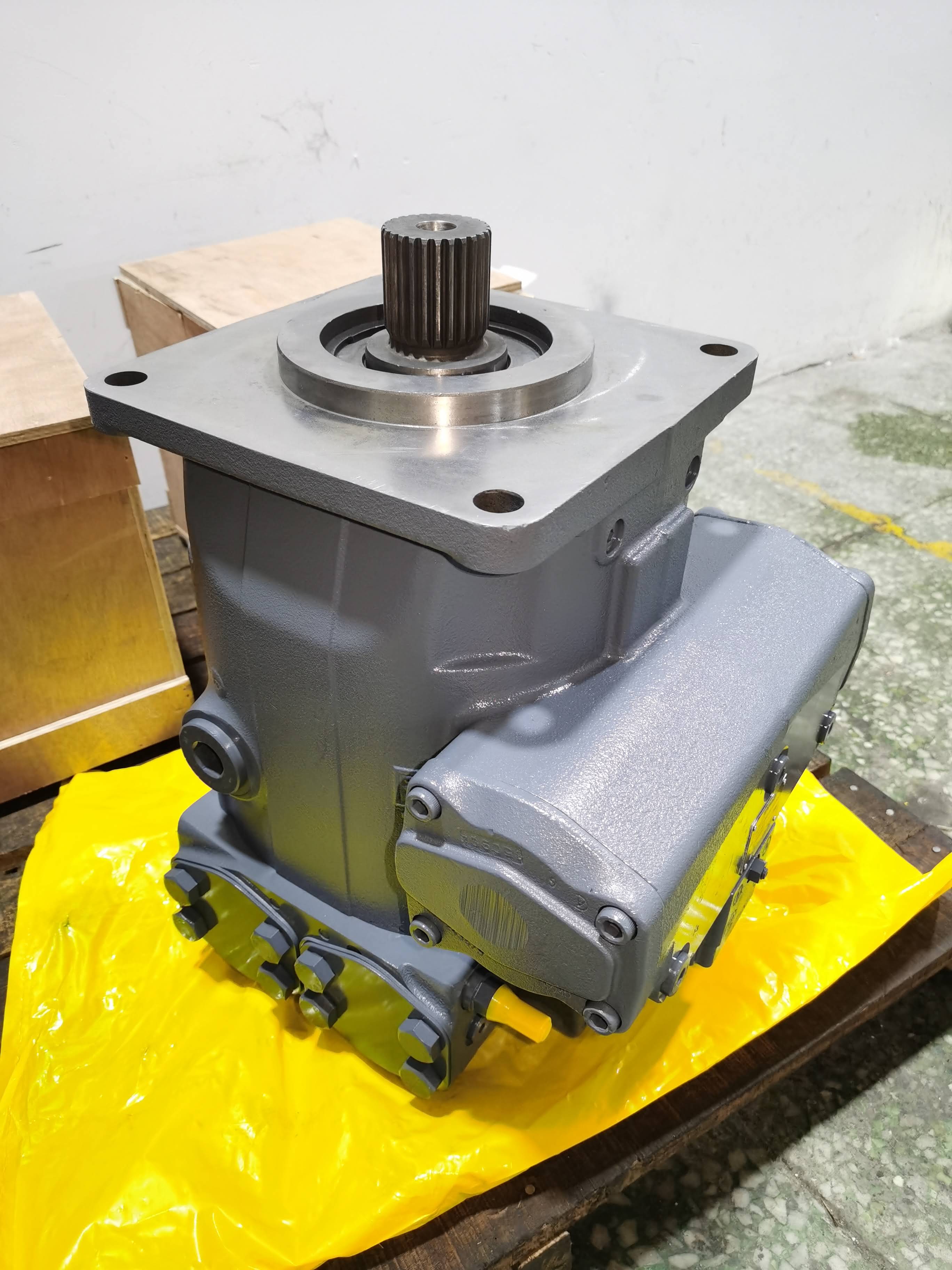

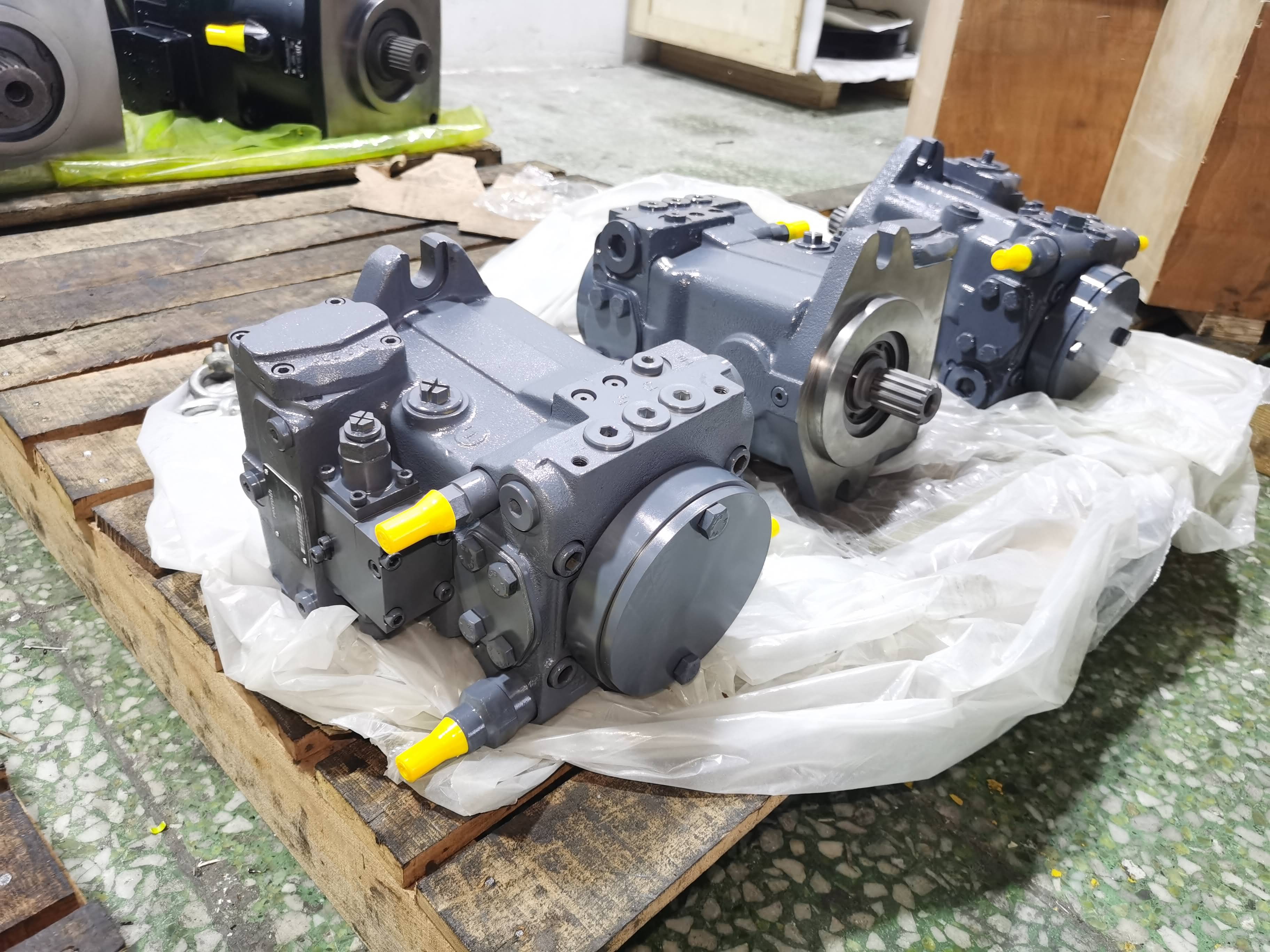

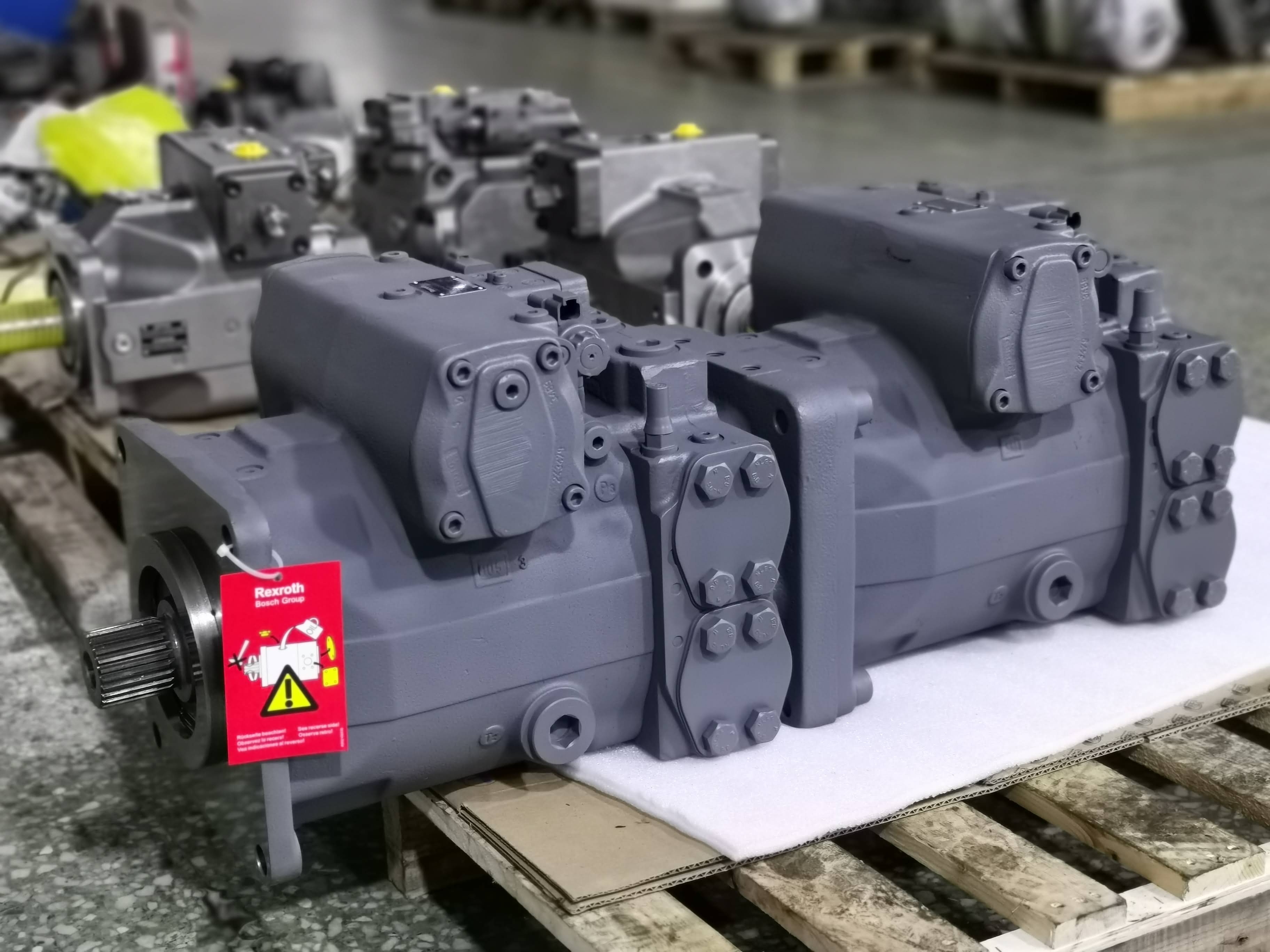

Finished product display

450 Bar Axial piston variable pump

A4VG Series Axial piston variable pump

A4VG Series Bosch Rexroth Axial Piston Variable Pump A4VG Series Maximum Pressure 450 Bar Images
