Rexroth series Hydraulic Parts , Hydraulic pumps Parts , Piston pumps Parts
Hydraulic Pump Accessories Description
The hydraulic pump is a crucial component of any hydraulic system, serving as its primary source of power. It converts mechanical energy into hydraulic energy, which is then used to operate various hydraulic devices and systems. To ensure the smooth and efficient operation of the hydraulic pump, it is essential to use high-quality accessories.
Some of the most important hydraulic pump accessories include:
1. Filter: A filter is used to remove impurities and contaminants from the hydraulic fluid, thus preventing damage to the pump and other components. It is essential to install a filter before the pump to ensure clean fluid enters the pump.
2. Valve: The valve is responsible for regulating the flow of hydraulic fluid in the system. It allows the fluid to pass in one direction while preventing it from flowing in the opposite direction. The valve is an essential component in ensuring the proper operation of the pump and the entire hydraulic system.
3. Pipe: Pipes are used to connect various components of the hydraulic system, ensuring that the hydraulic fluid can flow freely throughout the system. Pipes must be strong and durable to withstand the pressure and corrosive nature of the hydraulic fluid.
4. Connector: Connectors are used to attach various components of the hydraulic system to each other, ensuring a secure connection that prevents leaks and allows for smooth operation.
 |

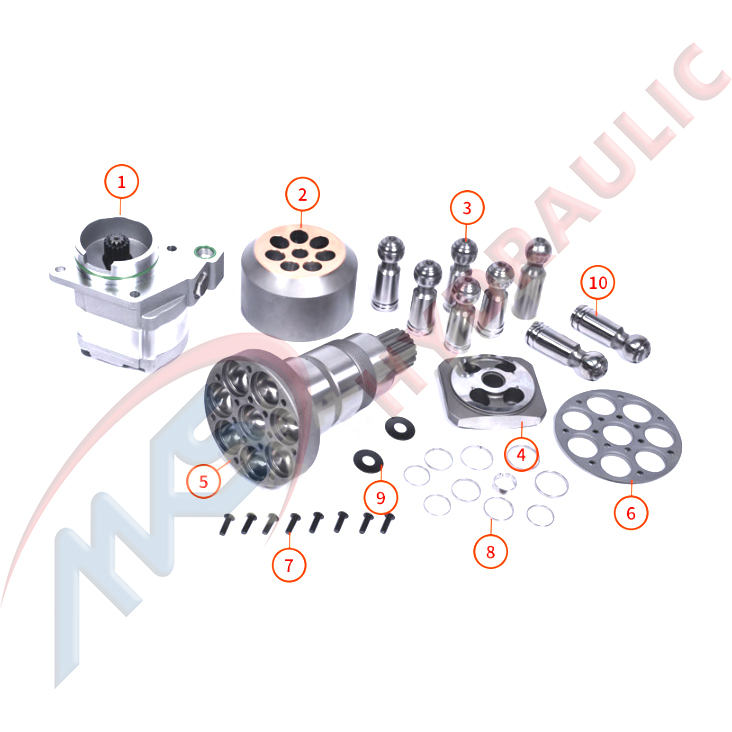

| A7VO28/55/80/107/160/200/250/355/500 1.齿轮泵 gear pump 2.缸体 cylinder block 3.柱塞 piston shoe 4/5.配油盘 valve plate 6.传动轴 drive shaft 7.回程盘 retainer plate 8.螺钉socket bolt 9.凌圈 ring of piston 10.碟簧 disc spring 11.中心轴 centre pin |
 |

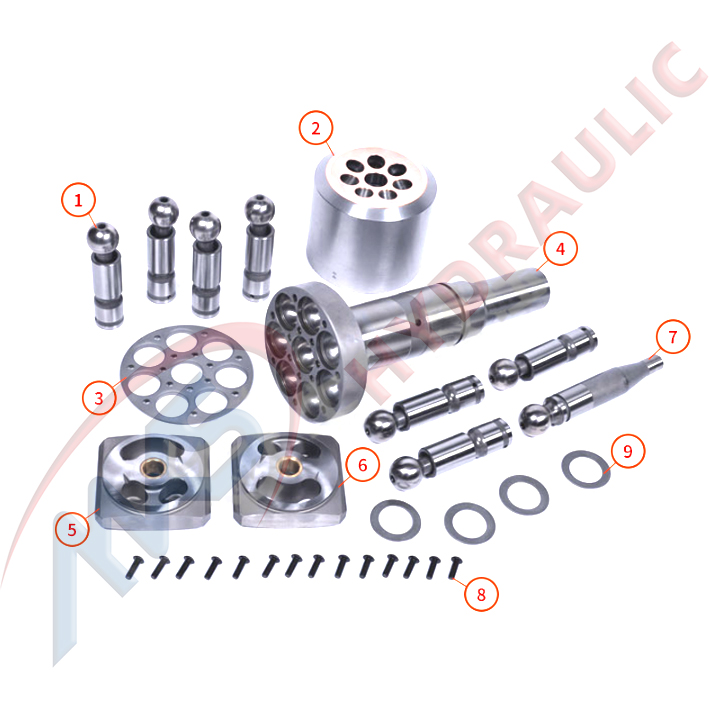

| A7V28/55/80/107/160/200/225/250/355/500/1000 1.连杆柱塞 piston 2.缸体 cylinder block 3.回程盘 retainer plate 4.传动轴 drive shaft 5/6 配油盘 valve plate (L/R/M) 7.中心轴 centre pin 8.螺钉 socket bolt 9.碟簧 disc spring |
 |

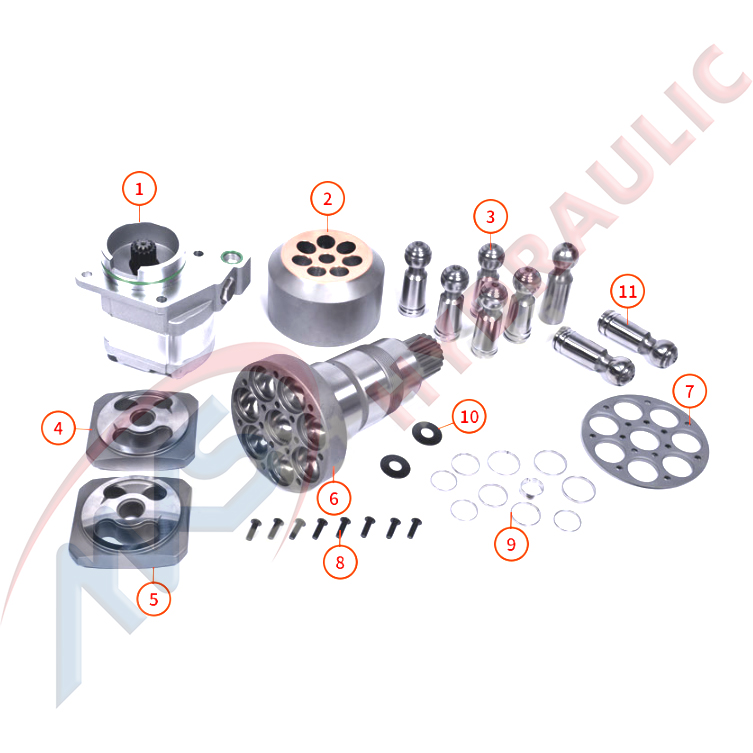

| A6VM28/55/80/107/140/160/200/250/355/500/1000 1.齿轮泵 gear pump 2.缸体 cylinder block 3.柱塞 piston shoe 4.配油盘 valve plate 5.传动轴 drive shaft 6.回程盘 retainer plate 7.螺钉socket bolt 8.凌圈 ring of piston 9.碟簧 disc spring 10.中心轴 centre pin |
 |

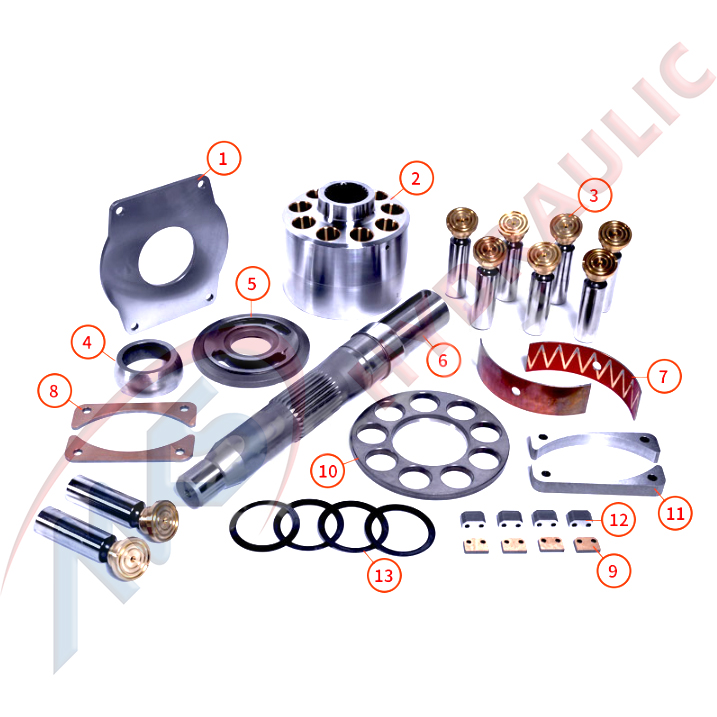

| A4VSO40/45/50/56/71/125/180/250/355/500/750/1000 1.止推板thrust plate 2.缸体 cylinder block 3.柱塞 piston shoe 4.球铰 ball guide 5.配油盘 valve plate 6.传动轴 drive shaft 7.轴瓦 saddle bearing 8/9.压板retainer 10.回程盘 retainer plate 11/12压板座 limiter 13.碟簧 disc spring |
 |

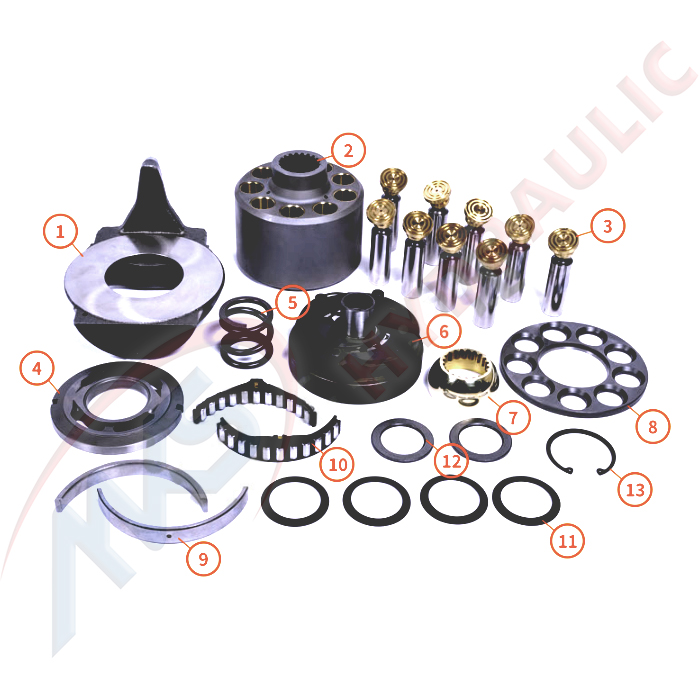

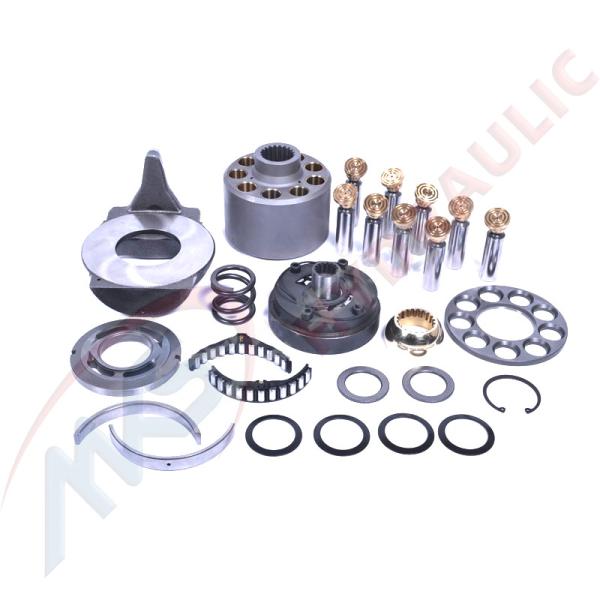

| A4VG28/40/56/71/90/125/180/250 1.摇摆 swash plate 2.缸体 cylinder block 3.柱塞 piston shoe 4. 配油盘 valve plate 5.大弹簧 coil spring 6.补油泵 charge pump 7.球铰 ball guide 8.回程盘 retainer plate 9.轴承座 bearing seat 10.轴承 saddle bearing 11.球铰垫片 ball guide spacer 12. 缸体垫片 spacer 13. 卡簧 snap ring |
 |

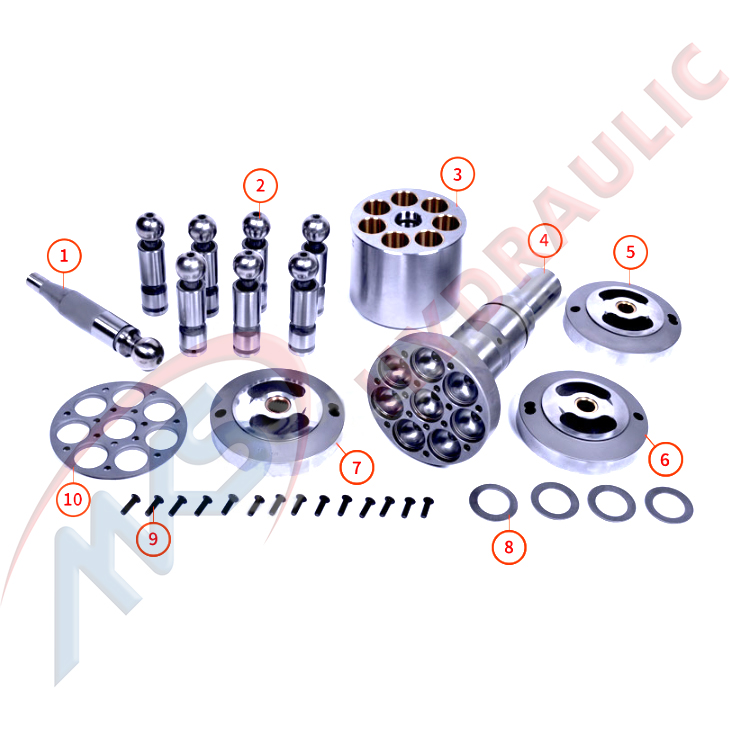

| A2F12/23/28/55/80/107/160/200/225/250/350/500/1000 1.中心轴 centre pin 2.柱塞 piston shoe 3.缸体 cylinder block 4.传动轴 drive shaft 5/6/7 配油盘valve plate 8.碟簧disc spring 9.螺钉 socket bolt 10.回程盘 retainer plate |
 |
| A11V40/60/75/95/130/145/160/190/200/210/260 1.缸体 cylinder block 2.柱塞 piston shoe 3.回程盘 retainer plate 4/5配油盘 valve plate 6.球铰 ball guide 7.传动轴 drive shaft 8.压板 retainer 9. 月牙轴承 saddle bearing 10.电控阀 valve 11.摇摆swash plate |
 |

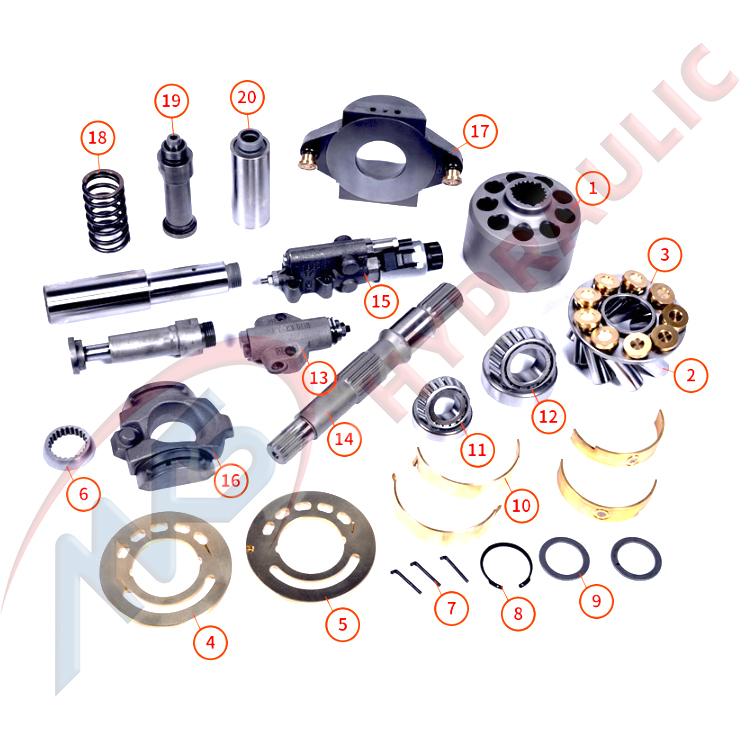

| A10VSO10/18/28/45/60/63/71/85/100/140 1.缸体 cylinder block 2.柱塞 piston shoe 3.回程盘 retainer plate 4/5配油盘 valve plate 6.球铰 ball guide 7.顶针 press pin 8.卡簧 snap ring 9.垫片 spacer 10.轴瓦saddle bearing 11. 小轴承 small bearing 12. 大轴承 big bearing 13.LR 阀 LR valve 14. 传动轴 drive shaft 15.ED72 控制阀 ED72 control valve 16/17 摇摆 swash plate 18.大弹簧 coil sprin 19.返向阀芯阀套 counter piston 20.控制阀芯阀套 control piston |
 |

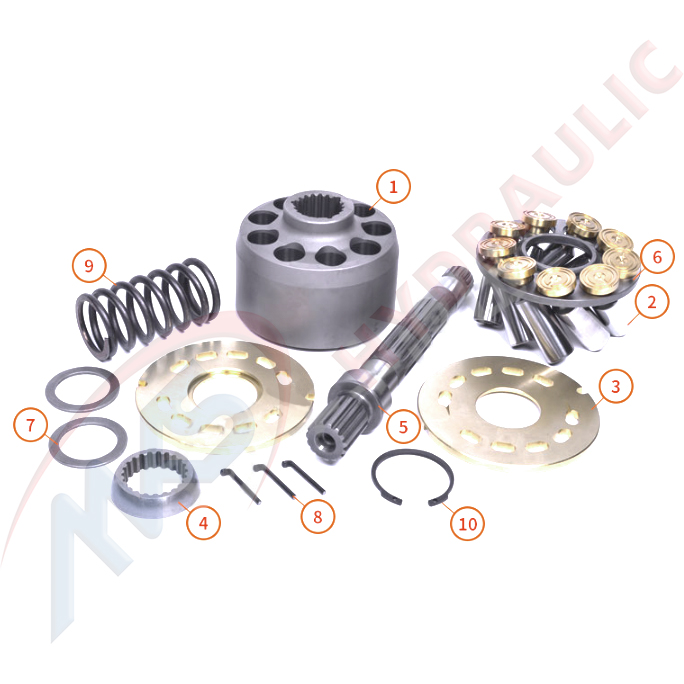

| A10VG18/25/45/63 1.缸体 cylinder block 2.柱塞 piston shoe 3.配油盘 valve plate 4.球铰 ball guide 5.传动轴 drive shaft 6.回程盘 retainer plate 7.垫片 spacer 8.顶针 press pin 9.大弹簧 coil spring 10.卡簧 snap ring |
